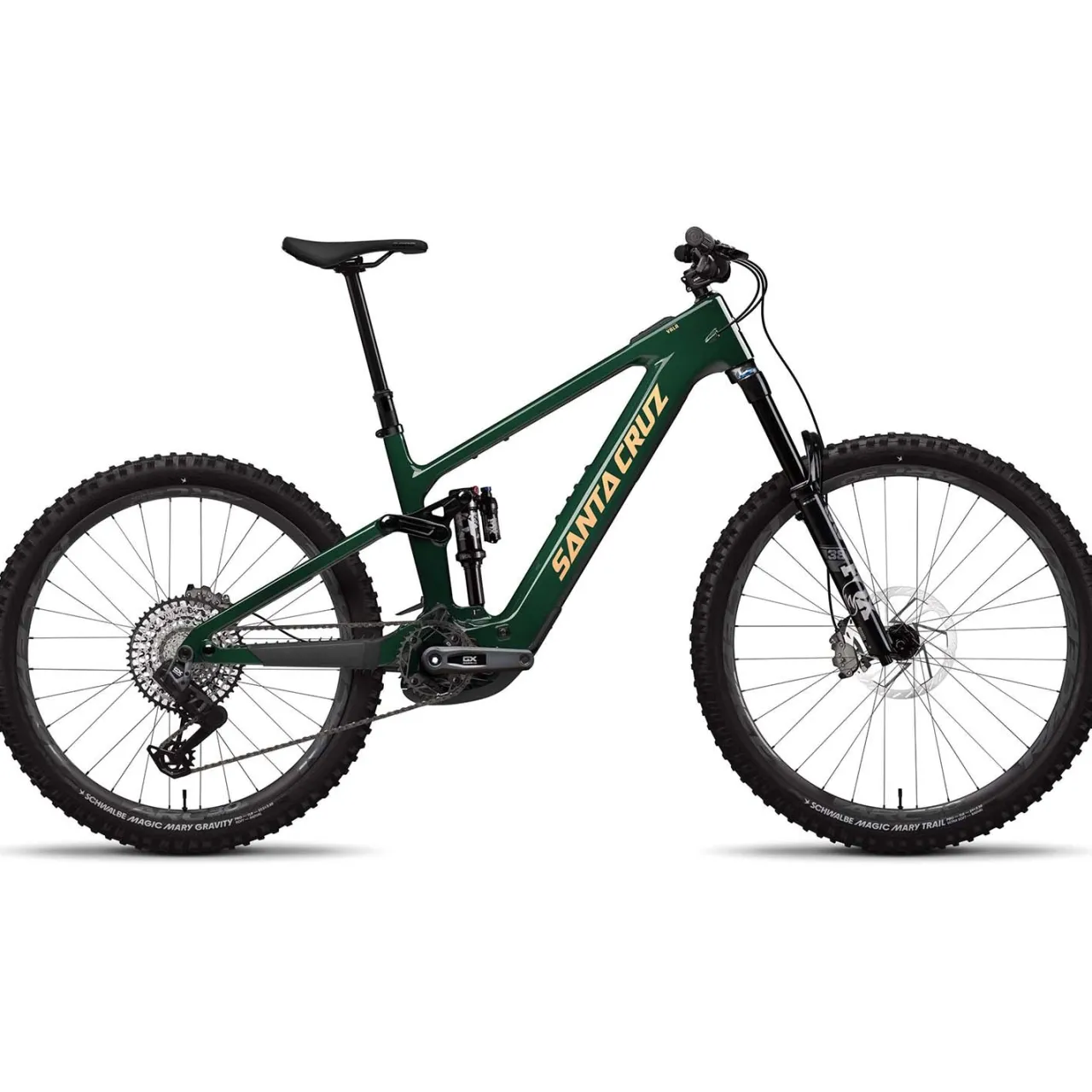

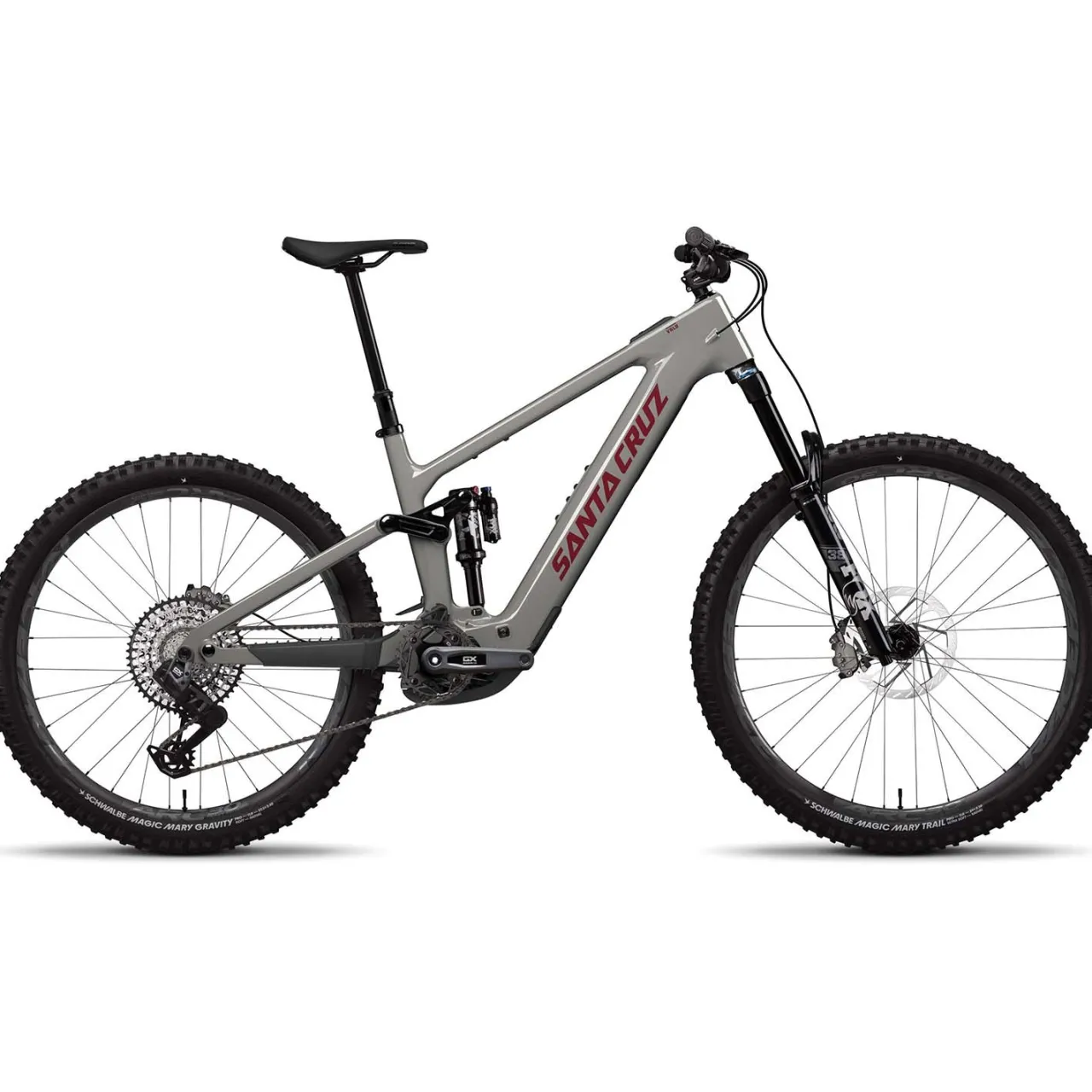

Santa Cruz Vala 1 C GX AXS E-Mountain Bike 2025- Electric Mountain Bikes|Mountain Bikes

Santa Cruz Vala 1 C GX AXS E-Mountain Bike 2025- Electric Mountain Bikes|Mountain Bikes

$94.00

Clear your calendar, forward all calls to voicemail, and turn those Out Of Office…

Size

Color

Clear

SKU: N/A Categories: Bike, Bikes, Electric Mountain Bikes, Mountain Bikes Tags: Gloss Grey, Midnight Green, Santa Cruz Brand: Santa Cruz

Clear your calendar, forward all calls to voicemail, and turn those Out Of Office alerts on: there’s a new Santa Cruz in town. The Santa Cruz Vala 1 C GX AXS E-Mountain Bike is a full power trail bike with serious attitude. It boasts a mixed wheel design, 64° head tube angle, and 150mm of rear travel, powered by the latest Bosch Performance Line CX drive unit and a 600Wh battery optimized for performance and weight. The Vala stands out in the Santa Cruz lineup for its horst link suspension, a design carefully engineered to deliver Santa Cruz’s best kinematics and handling while playing nice with the motor layout. If you ever wished for an e-Bronson, this is the bike you’ve been waiting for. This build comes equipped with the latest Fox Performance Elite suspension, hard stopping SRAM Maven Bronze brakes, and the rock solid SRAM GX AXS Transmission drivetrain. Outstanding!

Key Features

Carbon C Frame– Manufactured in their exclusive factory, Santa Cruz controls how their designs are produced, ensuring the highest quality control. Their production C series carbon frames are strong as hell, with optimized layups and the latest techniques.

Travel– 160mm Front / 150mm Rear

Wheel Size– Mixed Wheel (29″ Front / 27.5″ Rear)

Bosch Performance Line CX Drive Unit– The next generation Bosch Performance Line CX motor is quieter, lighter, and smaller than ever. More compact but no less powerful, it comes with a maximum torque of 85Nm. Choose between 4 standard modes and customize your ride in the Bosch Flow App.

Discreet Top Tube Display– The built-in display on the toptube allows for battery charge and mode to be displayed. The display can also be used to turn system on/off and toggle modes. More detail (% battery charge and range) can be found by using the app.

Independently Adjustable Geo and Progression Chips– The geo chip raises or lowers the bottom bracket 4mm, and adjusts the head tube angle by 0.3°. The progression chip changes the progression from 26-29%.

Tool Mount– Discreet mounting bolts underneath the top tube allows for clean, on-bike-storage of tools, tubes or an AirTag.

Biking Type: Mountain MountainMountain bikes are built for tackling rough terrain with frames made of durable materials like aluminum or carbon fiber, ensuring stability and maneuverability. They feature suspension to absorb impacts from rocks, roots, and drops, providing a smoother ride.

Used For: Trail TrailTrail bikes are the quintessential “mountain bikes.” If you’re heading into the woods expecting to do it all on two wheels – climbing, technical sections, AND fun descents – you’re looking for a trail bike.

Suspension: Full Suspension Full SuspensionEngineered to tackle the most challenging terrain with enhanced comfort and control. Unlike hardtail bikes, full suspension bikes feature both front and rear suspension systems that allow the wheels to move independently from the frame.

Gearing: 1 x 12

Frame Material: Carbon CarbonCarbon is a composite frame material. Unlike metals, carbon is composed of fibrous strands woven into a grid and bonded with epoxy. Carbon is favored by many for its lightness and stiffness but its complexity in fabrication makes it the most expensive option.

Water Bottle Mounts: 1

Fork: Fox 38 Performance Elite GRIP X2

Stanchion Diameter (mm): 38

Fork Travel (mm): 160

Rear Shock: Fox Float X Performance Elite

Rear Travel (mm): 150

Drive Unit: Bosch Performance Line CX BDU38

Battery: Bosch PowerTube 600Wh

Size	S	M	L	XL	XXL
Rider Height	5’1″ – 5’5″	5”5″ – 5’9″	5’9″ – 6’1″	6’1″ – 6’4″	6’4″ – 6’7″
Reach (mm)	432	456	477	497	522
Stack (mm)	626	636	644	657	671
Effective Top Tube (mm)	574	602	623	646	675
Seat Tube (mm)	380	400	420	460	500
Head Tube Angle (°)	63.9	63.9	63.9	63.9	63.9
Seat Tube Angle (°)	77.2	77.2	77.2	77.2	77.2
Chainstay Length (mm)	440	441	444	447	451
Bottom Bracket Height (mm)	340	340	340	340	340
Bottom Bracket Drop (mm)	32	32	32	32	32
Head Tube Length (mm)	110	120	130	145	160
Wheelbase (mm)	1211	1242	1269	1298	1334
Standover Height (mm)	736	730	730	730	723
Complete Weight (lbs)		49.32
Complete Weight (kg)		22.37
Wheel Size	Mixed Wheel	Mixed Wheel	Mixed Wheel	Mixed Wheel	Mixed Wheel
